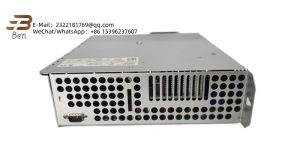

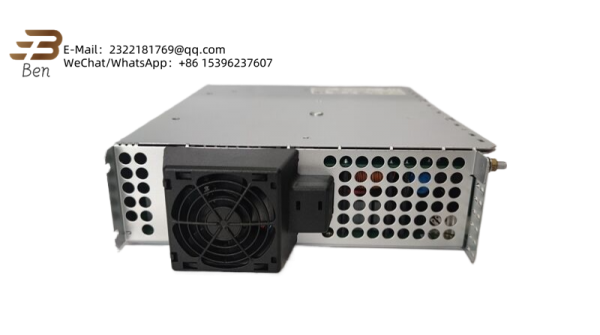

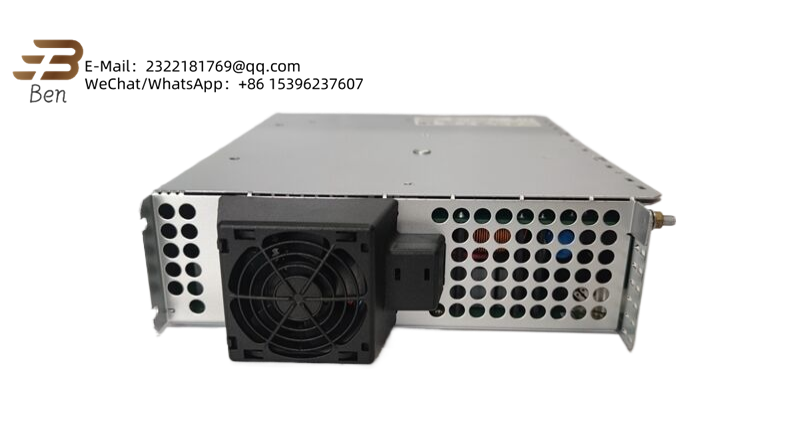

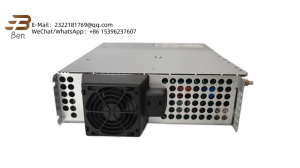

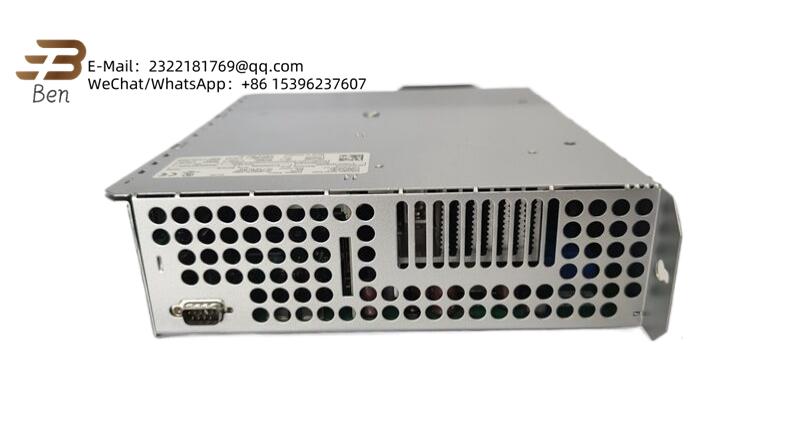

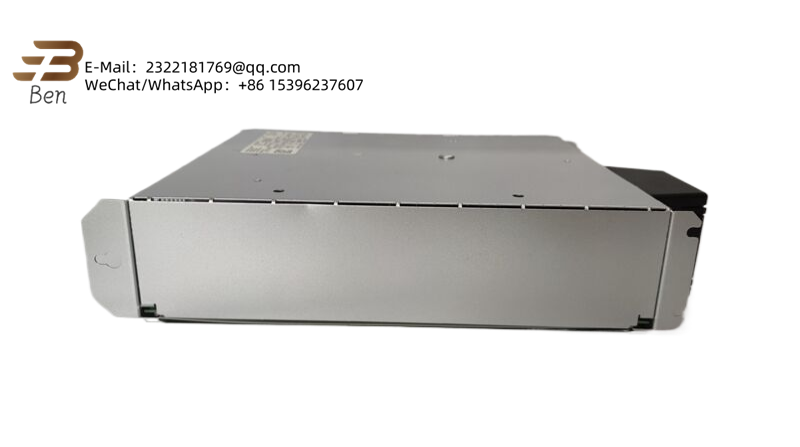

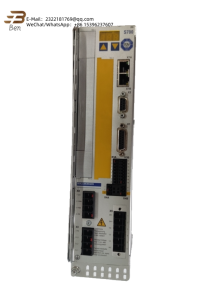

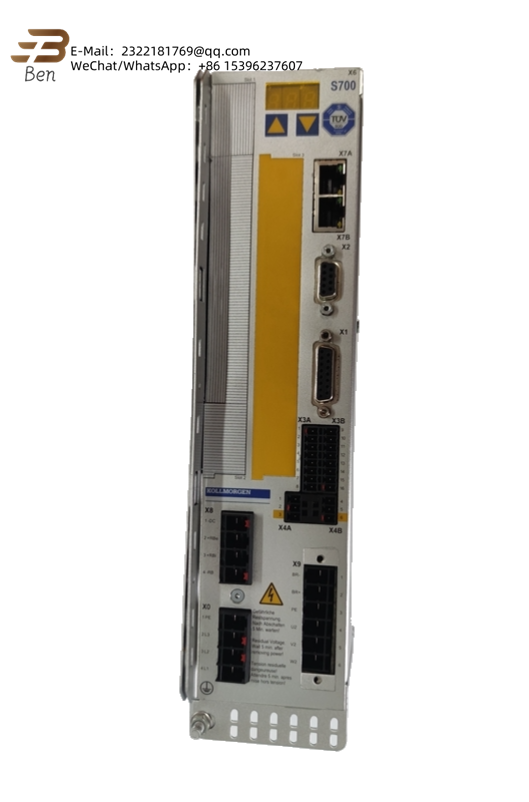

The Kollmorgen S70602-NANANA is a premium-grade digital servo drive designed for high-precision motion control applications in industrial automation. As part of Kollmorgen’s S7000 series, this advanced drive delivers exceptional torque control with industry-leading dynamic response. The S70602-NANANA features 600V AC input and 20A continuous current output, making it ideal for demanding CNC and robotics applications.
Engineered for maximum flexibility, the Kollmorgen S70602-NANANA supports multiple feedback interfaces including absolute encoders and resolvers. Its modular design allows seamless integration with various motor types while maintaining compact dimensions for space-constrained installations.
Key Features and Advantages:
Precision control: The Kollmorgen S70602-NANANA achieves sub-micron positioning accuracy through advanced compensation algorithms. Its adaptive vibration suppression technology eliminates mechanical resonance.
System integration: Native support for industrial networks simplifies connection to PLC and motion controllers. Automatic motor parameter identification reduces commissioning time by 50%.
Reliability: Military-grade components ensure 99.99% availability in 24/7 production environments. Triple-redundant protection circuits prevent damage from overloads.
Technical Specifications
Parameter NameParameter Value
ModelS 70602-NANANA
Manufacturer Kollmorgen
Type Digital Servo DriveInput
Voltage 3-phase 600V AC ±10%
Output Current 20A continuous (40A peak)
Control Bandwidth 3.0kHzFeedback
Interfaces EnDat 2.2, Hiperface
DSL, Resolver
Communication ProtocolsEtherCAT, PROFINET, CANopen
Protection Class IP66 (front panel)
Operating Temp-10°C to +60°C
Dimensions 225×160×65mmWeight2.5kg
Application Areas:
- Machine Tools: High-speed 5-axis machining centers
- Robotics: Articulated arm precision assembly
- Packaging: High-speed labeling systems
- Semiconductor: Wafer handling robots
In automated production lines, the Kollmorgen S70602-NANANA enables synchronized multi-axis coordination with <2μs jitter.
Related Products:
- Kollmorgen S20360-SRS high-performance servo driver
- S70802-NANANA: Higher power version (800V/30A)
- S70604-NANANA: Dual-axis configuration
- S70602-PM: Permanent magnet motor edition
- S70602-LN: Liquid-cooled model
Installation and Maintenance:
Installation preparation: Verify proper ventilation clearance (min. 100mm) before mounting S70602-NANANA. Use only shielded cables for all signal connections.
Maintenance recommendations: Perform bi-annual thermal imaging inspection of power terminals. Clean cooling fins monthly in high-dust environments.
Product Assurance:
Kollmorgen provides 12-month warranty with global technical support for S70602-NANANA. Each unit undergoes 500-hour validation testing including thermal shock and vibration tests.
